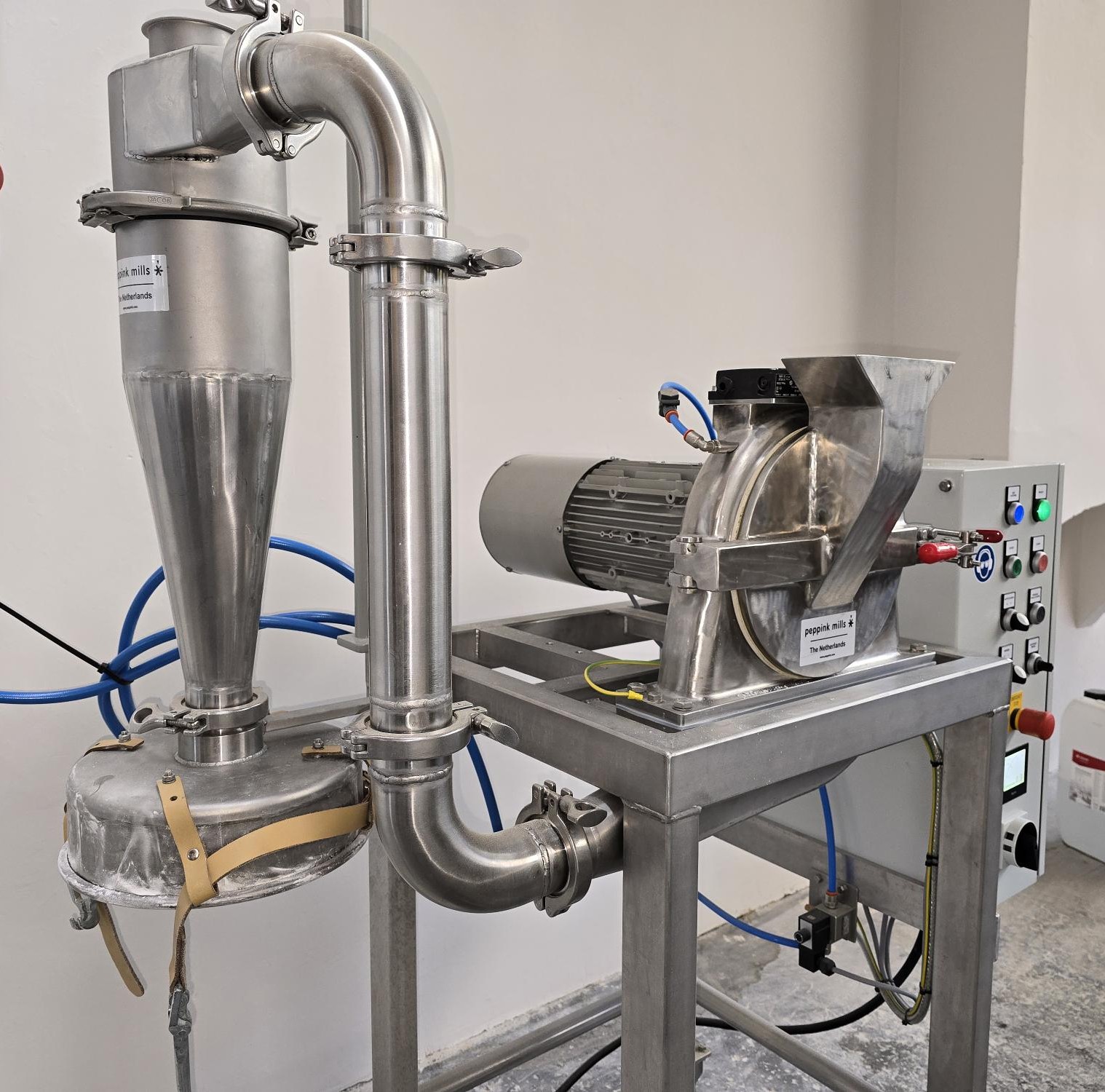

Peppink 200 AN mill
The Peppink 200 AN beater cross mill is suitable for both sample milling and small production milling.
The control panel can be supplied separately for easy adjustment of the mill settings. The mill has an automatic door protection and a clamping device for safe and easy use.
The capacity of the mill depends strongly on the product and the desired fineness.
Specifications Peppink 200 AN
| Mill dimensions (AxBxC) (mm) | 350 x 420 x 560 |
| Mill weight | approx. 60 kg |
| Milling chamber | ø200 mm x 38 mm wide |
| Mill inlet | Front |
| Milling speed | 6.500 - 9.000 rpm |
| Motor | 2,2 kW, 230/400 V, 50 Hz |
| Transmission | Flange motor |
| Mill house | Cast iron or cast stainless steel, with front cover and gasket |
| Sieve cage | Cast iron, removable |
| Sieve surface | 360° (± 198 cm²) |
| Sieve plates | Interchangeable, perforation of your choice |
| Beater cross | Hardened steel or stainless steel, 6 or 12 arms, possibly with wear tips |
| Supply product | Vibrating chute or screw |
| Exit product | Dust-free collection bin or collection bag |
| Options | Base frame, fixed or mobile |
| Available in stainless steel |
